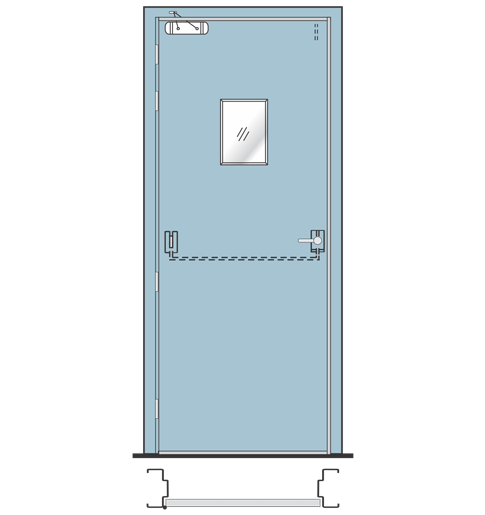

Metal Fire Rated Door Specification

(Single leaf door/ Equal leaf door/Un-equal leaf door)

Door Type	Metal Fire Rated Door
Fire Rating	120 mins
Shutter Thickness	46 mm
Criteria	Stability, Integrity & With Insulation Material
Testing Standards	BS 476 Part 20-22, IS 3614 Part 2
Frame Size	100 x 57mm Single Rebate 143 × 57mm Double Rebate.

Construction Details

• Steel Frame Profile Design

• Frame Thickness – 1.20 mm/ 1.60 mm Galvanized Steel

• Shutter Sheet Thickness – 1.0 / 1.2 mm Galvanized Steel

• Vision Panel – 2hrs. Fire rated Toughened clear Glass ( Optional)

• Shutter Thickness – 46 mm

• Shutter Infill Insulation – Fire Rated Insulation

• Finish powder coated finish in desired shade

Recommended Hardware

• SS Ball Bearing Hinges – SS 304 of

• Size 100mm x 75mm x 3mm

• Door Closer – Fire rated

• Tower Bolt / Flush Bolt

Optional Hardware

• Mortise Dead Lock Set with Cylinder- complete with D Shape Pull handle for Push / Pull Operations

• Mortise Sash Lock with Cylinder – Complete with Lever Handle for Push / Pull Operations

• Fire Rated Panic Bar – Push Side Operation Fire Rated External Panic Trim – Pull Side Operation

Recommended Finishes

• Powder Coating in desired RAL Shade Code

• Polyurethane Coating in desired RAL Shade Code

• Selective Wood Grain Finishes available
