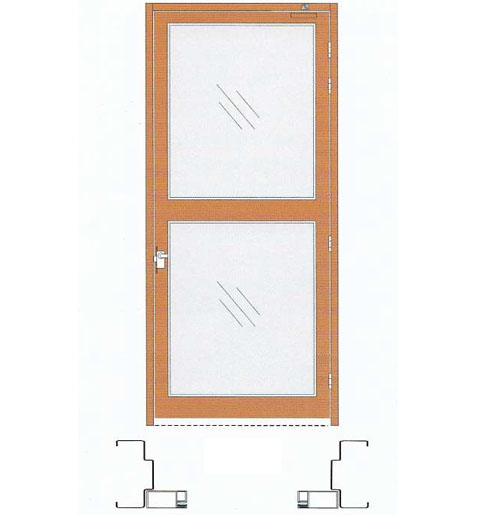

Glazed Metal Fire Rated Door Specification

Door Type	Glazed Metal Fire Rated Door
Door Frame	143 X 57 X 1.60 mm
Rating	60mins/ 120 mins
Shutter Thickness	50 X 1.60 mm
Shutter Stiles	Vertical & Top Members 50 X 100 X 1.60 mm bottom members 50 X 200 X 1.60 mm
Criteria	Stability, Integrity & With Insulation Material
Testing Standards	BS 476 Part 20-22, IS 3614 Part 2
Glazings	Glass –2hrs. Fire rated clear Glass
Shutter Infill Insulation	Mineral Wool Insulation

Construction Details

• Steel Frame Profile Design-BPFPL 100x50

• Frame Thickness – 1.6mm Galvanised Steel

• Shutter Sheet Thickness – 1.6mm Galvanised Steel

• Glass –2hrs. Fire rated clear Glass

• Shutter Infill Insulation – Mineral Wool Insulation

Optional Hardware

• Mortise Dead Lock Set with Cylinder- complete with D Shape Pull handle for Push / Pull Operations

• Mortise Sash Lock with Cylinder – Complete with Lever Handle for Push / Pull Operations

• Fire Rate Panic Bar – Push Side Operation Fire rated Panic Trim – Pull Side Operation

Recommended Hardware

• SS Ball Bearing Hinges – SUS 304 of Size 102mm x 89mm x 3mm

• Door Closer – Fire rated

• Tower Bolt / Flush Bolt

Recommended Finishes

• Power Coating in desired RAL Shade Code

• Polyurethane Coating in desired RAL Shade Code

• Selective Wood Grain Finishes available
